Item # |
Item Name |
Flange Dash Size |
Flange Size |
Port Dash Size |
Face Type |
---|---|---|---|---|---|

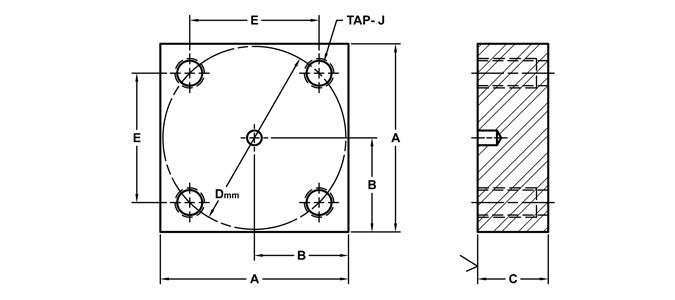

1632-06-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -06 | Flange Size N/A 10 mm3/8 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1632-08-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -08 | Flange Size N/A 13 mm1/2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1632-12-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -12 | Flange Size N/A 19 mm3/4 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1632-16-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -16 | Flange Size N/A 25 mm1 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1632-20-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -20 | Flange Size N/A 32 mm1-1/4 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1632-24-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -24 | Flange Size N/A 38 mm1-1/2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1632-32-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -32 | Flange Size N/A 51 mm2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1632-40-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -40 | Flange Size N/A 56 mm2-1/2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1632-48-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 250 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -48 | Flange Size N/A 63 mm3 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-06-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -06 | Flange Size N/A 10 mm3/8 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-08-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -08 | Flange Size N/A 13 mm1/2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-12-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -12 | Flange Size N/A 19 mm3/4 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-16-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -16 | Flange Size N/A 25 mm1 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-20-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -20 | Flange Size N/A 32 mm1-1/4 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-24-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -24 | Flange Size N/A 38 mm1-1/2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-32-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -32 | Flange Size N/A 51 mm2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-40-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -40 | Flange Size N/A 56 mm2-1/2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-48-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -48 | Flange Size N/A 63 mm3 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-56-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -56 | Flange Size N/A 70 mm3-1/2 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
1636-64-00M /Asset/sq-ff-blind-il.jpg | N/A ISO 6164 - 400 Bar, Flat Face, Blind, In-Line Flange | Flange Dash Size N/A -64 | Flange Size N/A 80 mm4 in | Port Dash Size N/A -00 | Face Type N/A Flat Face |
